Description:

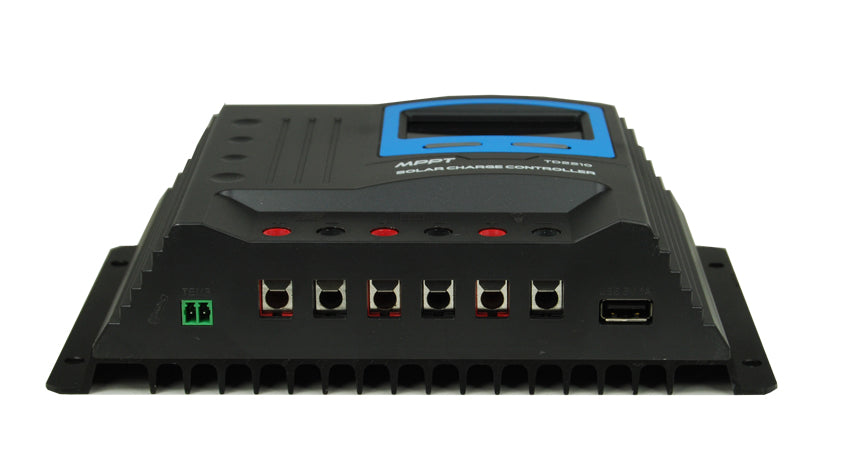

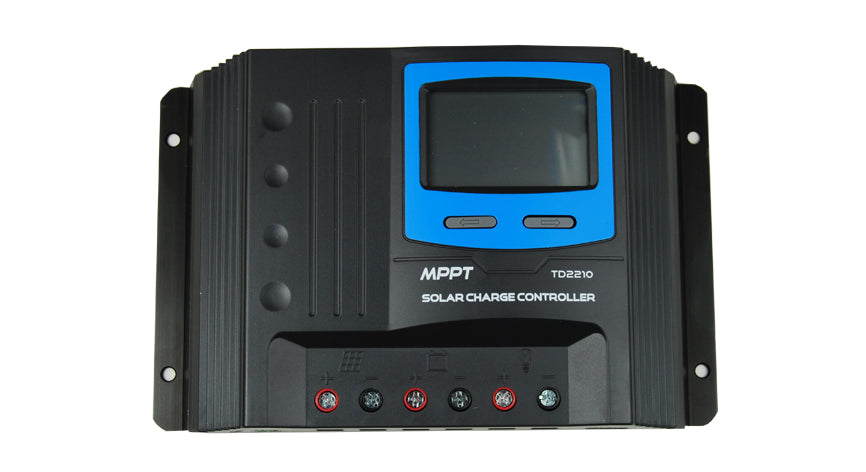

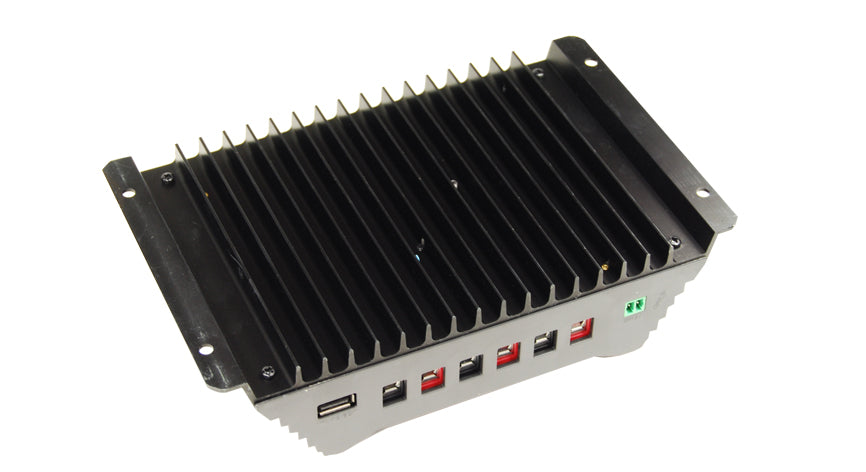

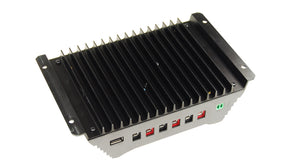

Heavy duty MPPT SolarKing Solar 20AMP solar regulator also known as solar charge controller. The unit has a large heat sink to dissipate heat and large wire terminal connections to accept large gauge cables. LCD display built in and the unit has a load timer built in for running lighting once daylight has run out for the day.
Solar regulators are used to connect your solar panels to batteries so the battery is charged at the correct power rates.
Features:
20 Amp Maximum Current
MPPT
12/24VDC Auto Select
USB Charging Socket
Adjustable Load Timer Output
Large Heat Sink
Charge Status Indicator
Under and Over Voltage Indicators
Load on/off Selectable
LCD Display
Large Terminals for large cables
Reverse Polarity Protection
2 Hour Boost Charge when under voltage
Over Current Protection
Reverse Polarity Protection
Specifications:
Dimensions: 200x127x50mm
Mounting holes: 190x85mm
Weight: 820grams
Terminal Size: 16mm2
Enclosure Rating: IP32
Temperature Range: -20°C~+55°C
Voltage: 12/24V Auto Selectable
Voltage Range: 11-30V
Standby Current Drain: <15mA
Maximum Current: 20AMP
Maximum Input Voltage: 36/72V
Overload Protection: 30sec restart
Package Includes:
1 x Solar Regulator
1 x Instructions
1x Gift Box
