Description:

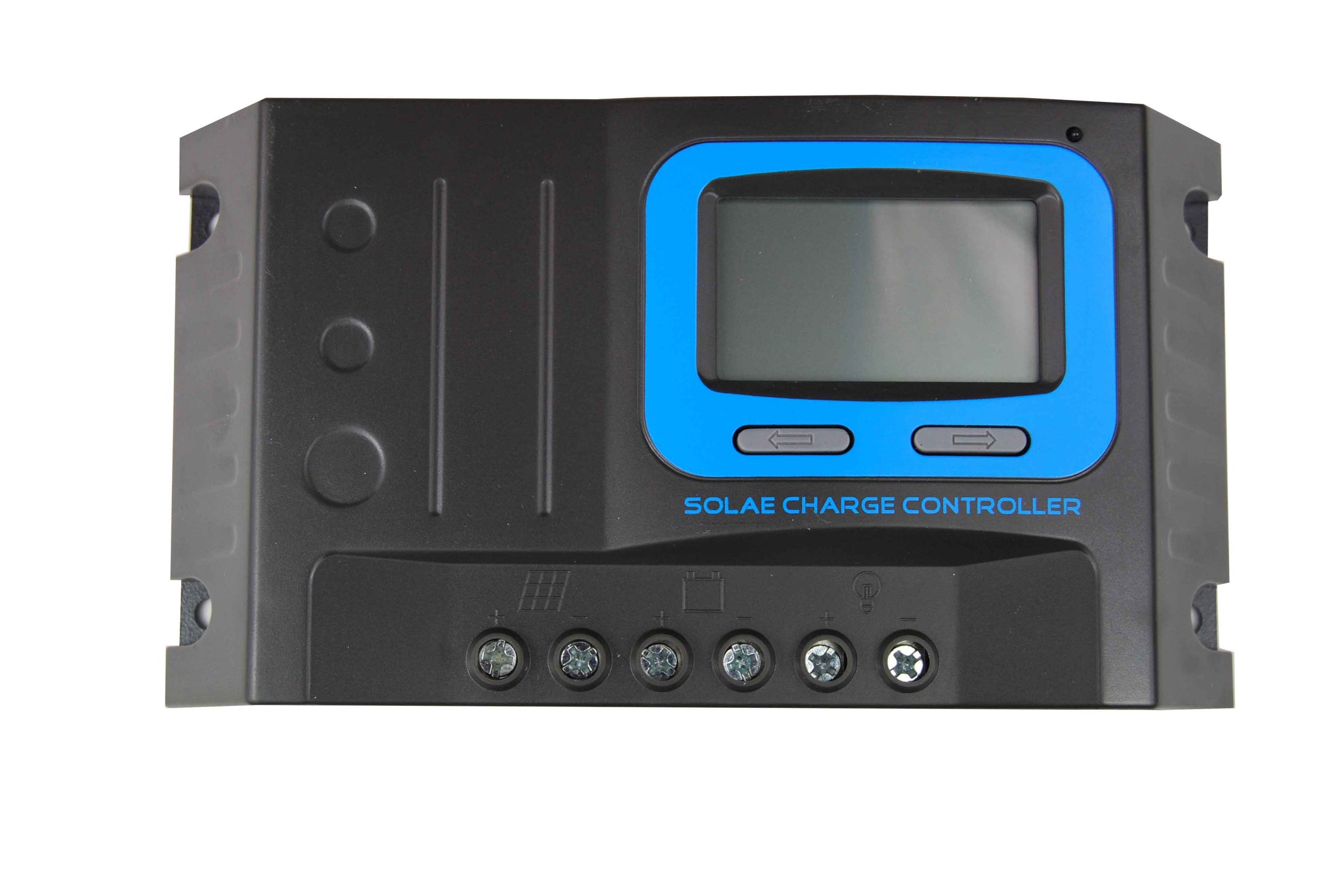

SolarKing Solar 20AMP solar regulator also known as solar charge controller. LCD display is built in and the unit has a load timer built in for running lighting once daylight has run out for the day.
Solar regulators are used to connect your solar panels to batteries so the battery is charged at the correct power rates.
Features:
20 Amp Maximum Current
12/24VDC Auto Select

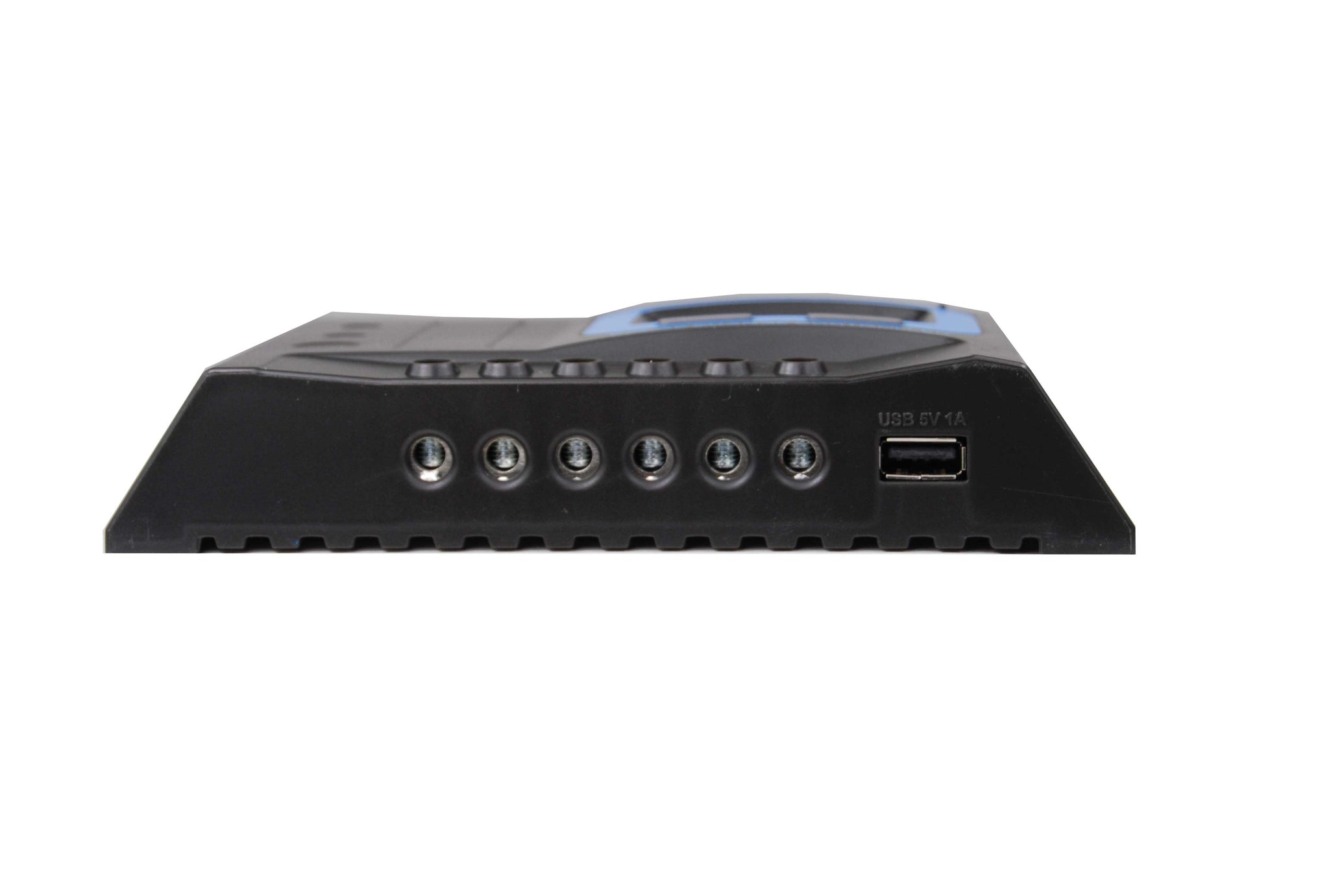

USB socket for charging
Adjustable Load Timer Output
Large Heat Sink
Charge Status Indicator
Under and Over Voltage Indicators
Load on/off Selectable
LCD Display
Large Terminals for large cables
Reverse Polarity Protection
PWM 3 Stage Charging
2 Hour Boost Charge when under voltage
Over Current Protection
Reverse Polarity Protection
Specifications:
Dimensions: 168x92x34mm
Hole Mounting: 156x62
Weight: 320grams
Terminal Size: 10mm2
Enclosure Rating: IP32
Temperature Range: -20°C~+50°C
Voltage Range: 12/24V Auto Selectable
Standby Current Drain: 12mA
Maximum Current: 20AMP
Maximum Input Voltage: 55V
Overload Protection: 30sec restart
Package Includes:
1x Solar Regulator
1x Instructions
1x Gift Box
