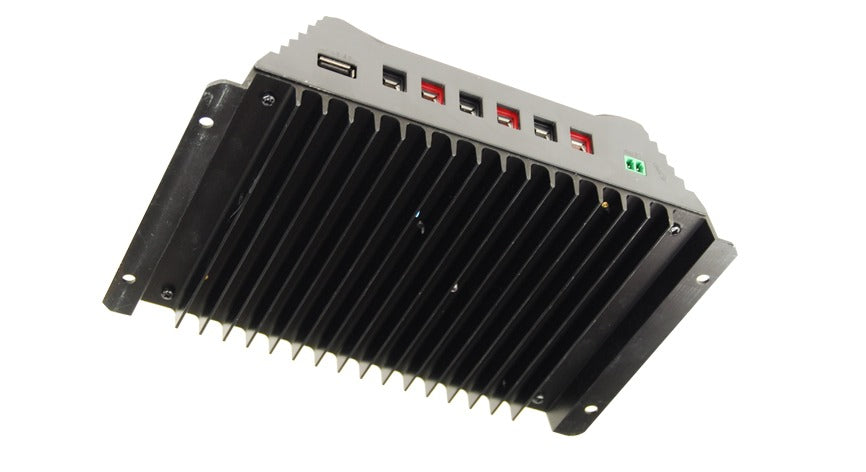

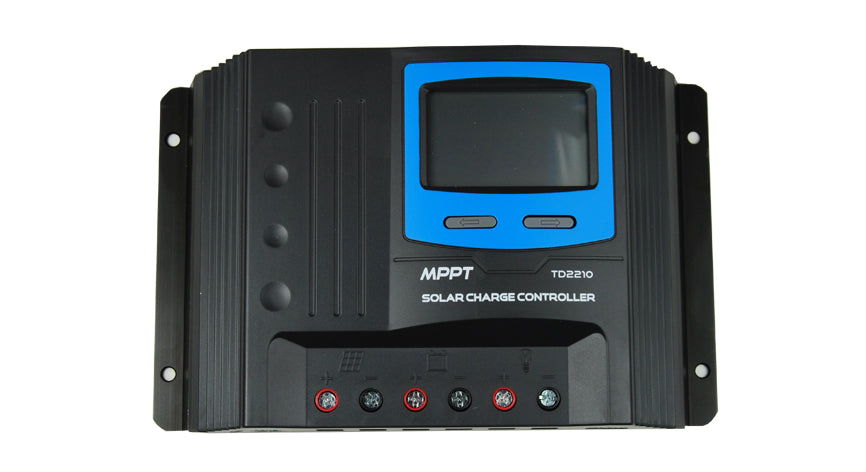

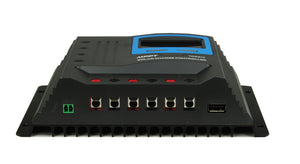

Heavy duty MPPT SolarKing Solar 30AMP solar regulator also known as solar charge controller. The unit has a large heat sink to dissipate heat and large wire terminal connections to accept large gauge cables. LCD display built in and the unit has a load timer built in for running lighting once daylight has run out for the day.
Solar regulators are used to connect your solar panels to batteries so the battery is charged at the correct power rates.
Features:
30 Amp Maximum Current
MPPT
12/24VDC Auto Select
USB Charging Socket
Adjustable Load Timer Output
Large Heat Sink
Charge Status Indicator
Under and Over Voltage Indicators
Load on/off Selectable
LCD Display
Large Terminals for large cables
Reverse Polarity Protection
2 Hour Boost Charge when under voltage
Over Current Protection
Reverse Polarity Protection
Specifications:
Dimensions: 200x183x54mm
Mounting holes: 190x130mm
Weight: 1.2Kg
Terminal Size: 16mm2
Enclosure Rating: IP32
Temperature Range: -20°C~+55°C
Voltage:12/24 Auto Selection
Voltage Range: 11-30V
Input Power Range: 390W (12V) 780W (24V)
Standby Current Drain: <15mA
Maximum Current: 30AMP
Maximum Input Voltage: 100V
Efficiency: 99%
Overload Protection: 30sec restart
USB Output: 5V (1 Amp)
Package Includes:
1 x Solar Regulator
1 x Instructions
1x Gift Box
