Victron Smart Battery Monitor with Bluetooth | High-Precision 500A Battery Management System

Stay in control of your battery health with the Victron Smart Battery Monitor. Designed for precision and reliability, this advanced battery monitor helps prevent unexpected discharge and gives you complete visibility of your power usage. With a clear LED-backlit LCD screen and built-in Bluetooth®, you can monitor real-time battery data directly from your smartphone, tablet, or computer.

Whether you're off-grid, RVing, boating, or managing a backup power system, this smart monitor tracks critical metrics like voltage, current consumption, state of charge (SoC), and time remaining. Historical data and alerts keep you one step ahead, helping you extend battery life and avoid downtime.

🔋 Key Features & Benefits

• Real-Time Monitoring: Displays voltage, current (Amps), amp-hours, state of charge (%), and time remaining before recharge.

• Bluetooth® Connectivity: Sync with your mobile device or computer for wireless monitoring via the VictronConnect App.

• Built-in Alarms & Relays: Set custom thresholds for voltage, SoC, or current—get alerts via buzzer, alarms, or relay outputs.

• Auxiliary Battery Support: Monitor a second battery’s voltage.

• Midpoint Voltage Monitoring: Check battery string balance and health.

• Flexible Mounting Options: Comes with both round flush mount and square bezel for panel customization.

• Easy Installation: Includes 500A/50mV shunt, fused power cable, and a 10m UTP data cable.

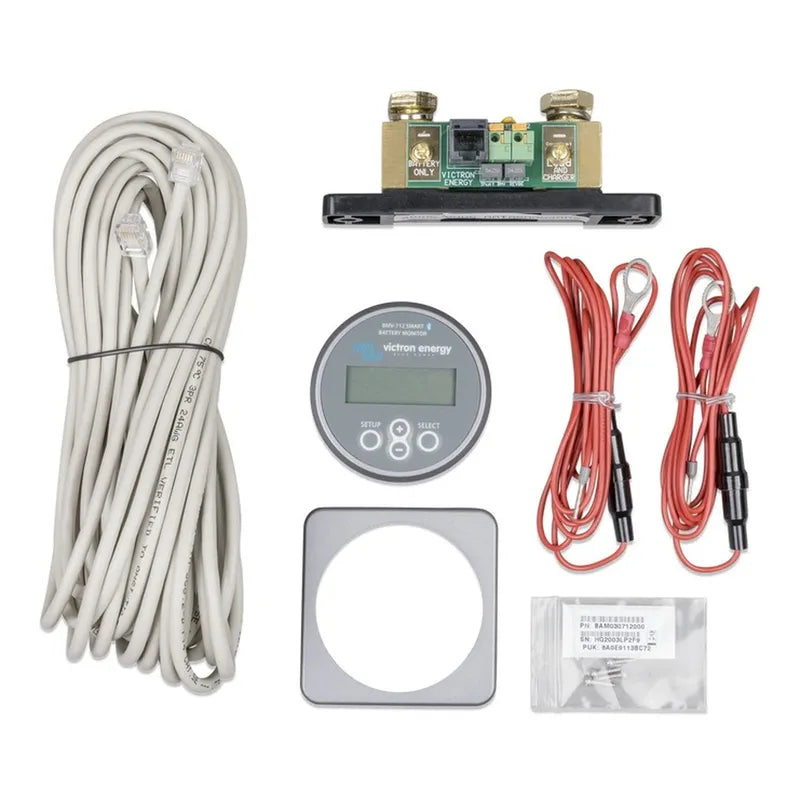

📦 What’s in the Box

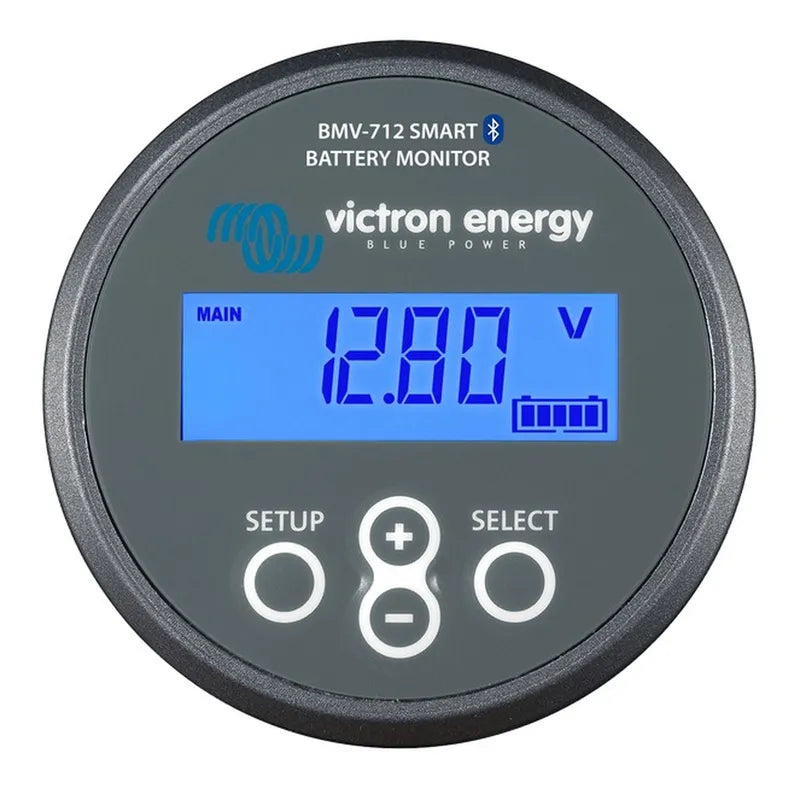

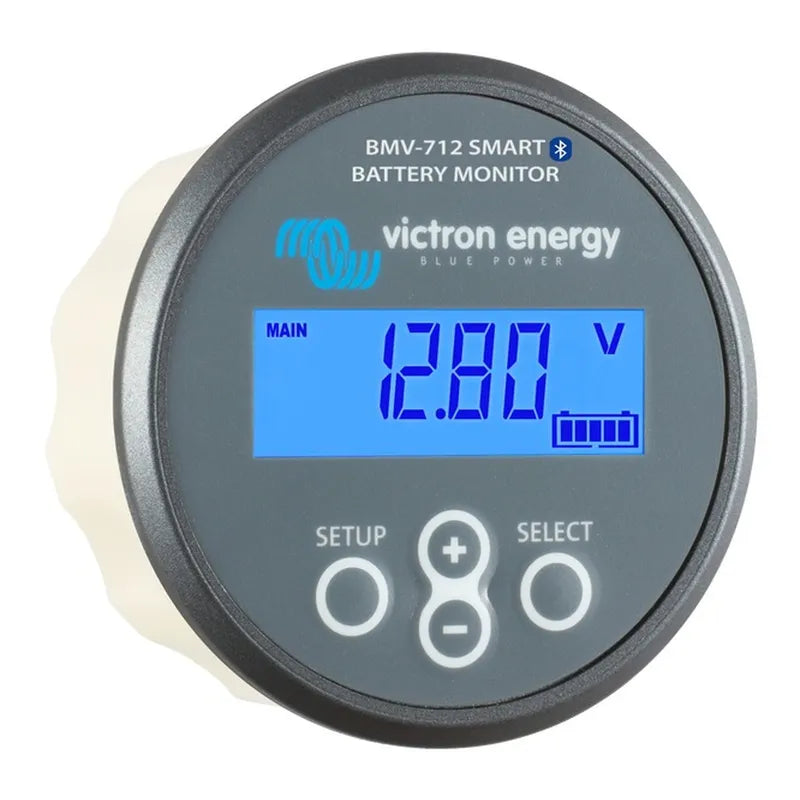

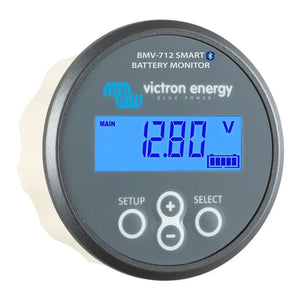

• Victron Smart Battery Monitor Unit

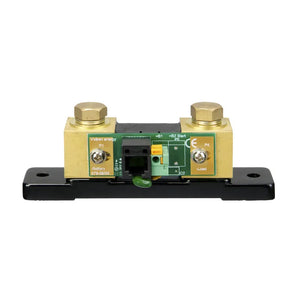

• 500A/50mV Current Shunt with Quick-Connect PCB

• 10m 6-Core UTP Connecting Cable

• Square Mounting Bezel

• Fused Power Cable

• User Manual

⚙️ Technical Specifications

• Supply & Battery Voltage: 6.5V – 70V DC

• Battery Capacity Range: 1 – 9999 Ah

• Accuracy:

  • Voltage: ±0.3%

  • Current: ±0.4%

• Resolution:

  • Voltage: ±0.01V

  • Current: ±0.01A

  • Amp Hours: ±0.01Ah

  • SoC: ±0.1%

• Protection Rating: IP55 (not for outdoor use)

• Shunt Terminals: M10

• Display Type: LED-backlit LCD

• Dimensions:

  • Bezel: 69 x 69 mm (square)

  • Round Display: 63mm (Dia) x 31mm (Depth)

• Package Dimensions: 27.6cm (L) x 23.4cm (W) x 7.6cm (H)

🛠️ Ideal For

• RV & camper van battery systems

• Marine & boat battery banks

• Solar & off-grid power systems

• Backup battery management

• Workshop or garage battery testing stations

🛒 Add to cart now and experience smart battery monitoring, Victron style.
